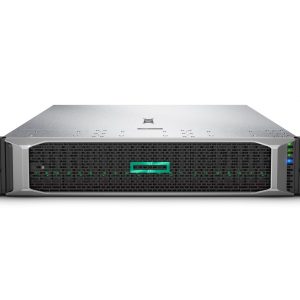

HPE DL380 Gen10 5218R 32GB-R S100i NC 8SFF 800W BTO SRV

213,000,000 تومان

ناموجود

توضیحات

سرور اچ پی DL380 G10 یک سرور از خانواده سرور های HPE ProLiant با شکل ساختاری (Form Factor) دو یونیت رکمونت یک سرور اچ پی ایده آل برای کاربرانی است که نیاز به به یک توان پردازشی خوب با قابلیت مقیاس پذیری و گسترش پذیری (expandability and scalability)  بالا دارند.

این سرور اچ پی HPE DL380 8SFF مناسب برای مجازی سازی (virtualization) ، بیگ دیتا (Big Data) دیتابیس و high-performance computing است و برای شما چابکی ، انعطاف پذیری و امنیت را فراهم می آورد. سرور HPE DL380 Gen10 از 2 سوکت سی پی یو های خانواده اسکیلبل زئون (Intel® Xeon® Scalable) تا 28 کور به علاوه 24 اسلات رم های 2933MT/s HPE DDR4 SmartMemory پشتیبانی می کند.

سرور اچ پی HP DL380 Gen10 از دو سوکت ( از نوع LGA 3647 ) سی پی یو اینتل خانواده اسکیلبل زئون (Intel® Xeon® Scalable) پشتیبانی می کند. نسل اول یعنی 1st Generation Intel® Xeon® Scalable یا (Skylake) و نسل دوم یعنی 2nd Generation Intel® Xeon® Scalable یا (Cascade Lake) در چهار رده پلاتینیوم (Platinum) و گلد (Gold) و سیلور (Silver ) و برنز (Bronze ) به بازار عرضه شدند.

سی پی یو های خانواده Scalable حداکثر تا 28 کور در هر سوکت را پشتیبانی می کنند . پس به این صورت یک سرور اچ پی DL380 8SFF G10 در مجموع با داشتن دو سوکت سی پی یو زئون Scalable تا 56 کور و 112 Thread را پشتیبانی می کند.

شناسایی سی پی یو های این خانواده بسیار ساده است. عدد اول بیانگر رده سی پی یو عدد دوم بیانگر نسل سی پی یو می باشد. اعداد سوم و چهارم SKU پردازنده را مشخص می کند و  حروفی که به دنبال آن می آیند مشخص کننده آپشن های پردازنده هست.

  • هر پردازنده Intel Xeon Scalable دارای دو مموری کنترلر بوده که به ازای هر کنترلر 3 کانال مموری وجود دارد. هر کانال مموری از دو ماژول رم پشتیبانی می کند . در نتیجه ما به ازای هر سوکت پردازنده 12 اسلات رم داریم. با توجه به این که یک سرور اچ پی DL380 8SFF Gen10 دارای دو سوکت سی پی یو هست در مجموع این سرور hp از 24 اسلات رم پشتیبانی می کند.

نسل اول پردازنده های Intel Xeon Scalable از حداکثر سرعت 2666MT/s و نسل دوم پردازنده های Intel Xeon Scalable از حداکثر سرعت 2933MT/s پشتیبانی می کنند. همچنین در نسل دوم امکان استفاده از پرسیستنت مموری ( Intel Optane DC Persistent Memory Module) یا DCPMM وجود دارد.



فهرست پارت نامبر و قطعات داخلی سرور :
تصویر Part Number Part Description RoHS
790317-001 Ethernet 10Gb 2-port 562FLR-SFP+ adapter, FlexibleLOM form-factor – Has two 10Gbe SFP+ ports – Provides up to 40Gb/sec bi-directional per adapter – Requires one x8 PCIe (Gen 3) FlexibleLOM slot COMPLY_2106
744116-001

Cable management arm kit – Guides the power and interface cables to prevent binding when the server is slid in and out of the rack – Mounts to the rear of the rack

COMPLY_1906
670945-001 Left bezel ear assembly COMPLY_1405
667263-001 Support bracket with card guides – Supports the rear of the PCIe cards when installed on the system I/O board – Includes left and right support brackets COMPLY_5012
784621-001 Mini-SAS cable assembly kit (Includes two mini-SAS cables) – For connecting the 8-bay Small Form Factor (SFF) hard drive cage to the drive controller board COMPLY_5012
875096-001 Power cable kit COMPLY_2106

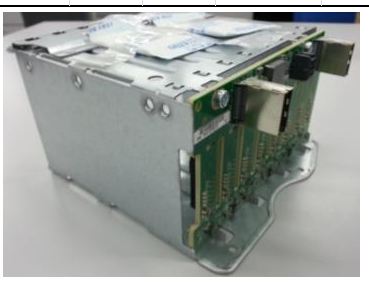

780971-001 8-bay hot-plug small form factor (SFF) hard drive cage assembly – Includes the metal cage structure and the SAS backplane board – Mounts in the front of the server COMPLY_2106
875055-001 Fan cage – supports 6 fans COMPLY_5012
875056-001 PCI riser cage COMPLY_2106
652999-001 Hard drive blank (cover) – To fill empty 2.5-inch small form factor (SFF) drive bay slots COMPLY_2106
667276-001 Hard drive blank (Cover) – To fill empty Small Form Factor (SFF) drive bays – Gen8 COMPLY_5012
670033-001 Hard drive blank (cover) – To fill empty Small Form Factor (SFF) drive bays – for Gen8 servers COMPLY_5012
675607-001

Small Form Factor (SFF) hard drive blank (Cover) – To fill unused hard drive bays

COMPLY_1405
775423-001 DL560/DL360 Gen9 blank cover kit – Contains power supply blank cover, Flexible LOM blank cover, fan slot blank, and Heat Sink blank COMPLY_1906
875067-001 Miscellaneous blank kit rear COMPLY_2106
875068-001 Miscellaneous blanks/bracket kit 2-Small Form Factor (SFF) rear COMPLY_2106
875069-001 Miscellaneous blanks kit front COMPLY_2106
878543-001 8-Small Form Factor (SFF) SAS backplane 12 GB/s interface speed COMPLY_2106
875075-001 Standard fan module ; COMPLY_2106
P39788-001 SPS-LATCH, MEGA CBLANK, FAN -N/A-
875054-001 Baffle system COMPLY_5012
875066-001 Blank kit includes – Fan and latch M.cell + PCIe/T. RTNRs COMPLY_5012
P01466-001 Baffle system module COMPLY_5012

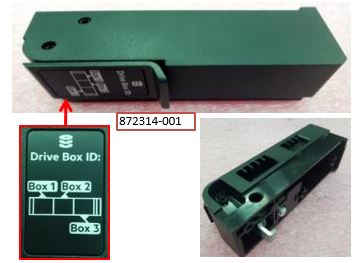

P05120-001 Ear, BLK, CL2800 Gen10, RT COMPLY_5012
P19928-001 System I/O without NIC COMPLY_2106
P19929-001 Blank, Quad NIC COMPLY_2106
809955-001 Miscellaneous blank kit for Apollo 4200 – Includes air blocker for PCIe expansion slots 5-7, air blocker for front 2-drive cage backplane, chassis retention bracket, fan blank, LFF and SFF drive blank, cable management holder, and FlexibleLOM blank COMPLY_5012
875083-001 Standard ear kit left and right side COMPLY_2106
875070-001 Standard heat sink ; COMPLY_5012
878510-001 PCI CPU2 blanks kit COMPLY_5012
P06189-001 HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart memory kit COMPLY_2106
P14635-001 DIMM CL32GB PC4-2933Y-R.2Rx4 COMPLY_2106
877946-001 2×8 x16 PCIe M.2 riser ; COMPLY_2106
P02757-001 System I/O board (motherboard) assembly used in DL360 and DL380 Gen9 servers – Includes the system I/O board, alcohol pad, thermal grease COMPLY_2106
142258-001 AC Power Distribution Unit (PDU) power cord (Black) – 250 V ac, 16 AWG, 2.0 m (6.6 ft) long – Includes IEC-320 C14 (M) connector to IEC 320 C13 (F) connector COMPLY_2106
142258-002 AC Power Distribution Unit (PDU) power cord (Black) – 250 V ac, 16 AWG, 2.5 m (8.2 ft) long – Includes IEC-320 C14 (M) connector to IEC 320 C13 (F) connector COMPLY_2106
142263-001 Power cord (Black) – Three conductor, 1.83 m (6.0 ft) long – IEC-320 C-14 to IEC-320 C-13 COMPLY_2106
142258-003 AC Power Distribution Unit (PDU) power cord (Black) – 250 V, 16 AWG, 3 m (9.8 ft) long – Has C14 (M) connector to C13 (F) connector COMPLY_2012
416151-291 HP 12A Black Power Cord (Japan) COMPLY_2.07
416151-B21 Power Distribution Unit (PDU) power cord COMPLY_2106
538266-001 Power cord (black) – Three conductor, 1.82 m (6 ft) long – Has straight (F) C13 receptacle (For 100 V in Japan) COMPLY_1906
875077-001 Power module without SID COMPLY_2106
865409-001 Hot Plug Power Supply 1U, 12V, 800W, G10 COMPLY_2106
866730-001 800 Watt AC Flexible Slot ‘Platinum Plus’ hot-plug low Halogen power supply – Supports Power Discovery Services (blue plug) – 94% efficiency- Mixing of power supplies in the same server is not supported, must be the same spare part number ; COMPLY_5012

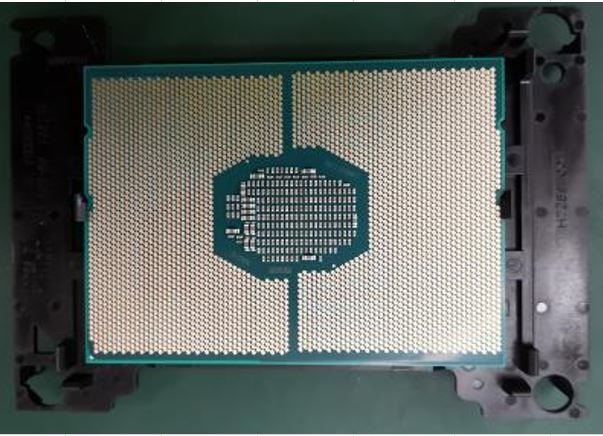

P25090-001 Intel Xeon-Gold 5218R v4 Sixteen-Core 64-bit processor – 2.3 GHz (125 watt thermal design power (TDP)) COMPLY_5012
744114-001 Easy install rack mount slide rail kit – For 2U high Small Form Factor (SFF) model servers COMPLY_1906

توضیحات تکمیلی

Brand

SKU

P24844-B21

Processor

5218R (2.1GHz, 20 core, 125W)

Number of Processors

1

Chassis

8SFF NC Chassis (P19720-B21)

Network Controller

P24844-B21 / 291 HPE Ethernet 10Gb 2-port FLR-SFP+ X710-DA2 Adapter (727054-B21) plus optional stand-up card
Notes: No embedded networking

Storage Controller

S100i embedded SW RAID with 14 SATA ports (12-ports accessible)

Memory

32GB RDIMM 2R 2933 MT/s  (1x 32 GB; P00924-B21)

Notes: Runs at 2666 MT/s due to processor limitation

Fans

4-standard fans

Power Supply

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (865414-B21)

Rail Kit

SFF Easy install rail kit (73360-B21) with Cable Management Arm (733664-B21)

Server Chassis Type

SFF (2.5")

Server Form Factor

Rackmount
